Hypermedia-Driven RESTful Web Services : Spring HATEOAS 구현방법 [2]

728x90

Spring에서 Hateoas를 구현하는 방법에 대해서 알아보겠다.



## 환경 : Spring Boot + IntellJ + Maven


0) Dependency

<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-hateoas</artifactId>
</dependency>

1) Link 를 만들기 위하여 WebMvcLinkBuilder 활용

Link link = new Link("http://localhost:8080/api/actors/1");
// 링크를 만들때 위와 같이 하드코딩을 하지 않도록 WebMvcLinkBuilder를 사용

// # WebMvclinkBuilder를 사용하여 링크를 만든다.
// Link Object에는 rel와 href를 넣는다.
// rel : 이름 / href : 실제 링크
// linkTo() : methodOn에 컨트롤러 이름을 주고, 그 컨트롤러 메서드 이름을 준다.
// withSelfRes() : self를 주려면 이렇게 / 아니면 .withRel("~") 이렇게 준다.

Link lnk = WebMvcLinkBuilder
            .linkTo( methodOn(WebController.class).getAllAlbums( ) )
            .withSelfRel();      // .withRel("albums");




2) Representation models

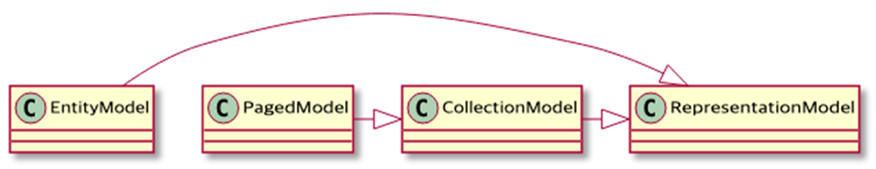

represntationModel 상속 관계

- Spring Hateoas에서 여러가지 class를 제공, 제일 상단에 존재하는 Representation Model을 사용하여 Representation을 만든다.

- Representation Model는 links를 추가하기 위한 다양한 메서드를 가지고 있음. 또한 links를 가지고 있는 컨테이너 라고 보면 된다.



# 코드예시  : Entity & Model

## ActorEntity


@Entity
public class ActorEntity {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String firstName;
    private String lastName;
    private String birthDate;

    @ManyToMany(cascade=CascadeType.ALL)
    @JoinTable(
            name = "actor_album",
            joinColumns = @JoinColumn(name = "actor_id"),
            inverseJoinColumns = @JoinColumn(name = "album_id"))
    private List<AlbumEntity> albums;
}

## ActorModel => DTO로 사용

@Getter
@Setter
@Builder
@NoArgsConstructor
@AllArgsConstructor
@EqualsAndHashCode(callSuper = false)
@Relation(collectionRelation = "actors", itemRelation = "actor")
@JsonInclude(JsonInclude.Include.NON_NULL)
public class ActorModel extends RepresentationModel<ActorModel>
{
    private Long id;
    private String firstName;
    private String lastName;
    private String birthDate;

    private List<AlbumModel> albums;
}

- ActorEntity는 Entity로 그대로 사용.

- ActorModel은 RepresentationModel을 상속받아서 사용하기 때문에 링크추가 이건, DTO로 사용함.

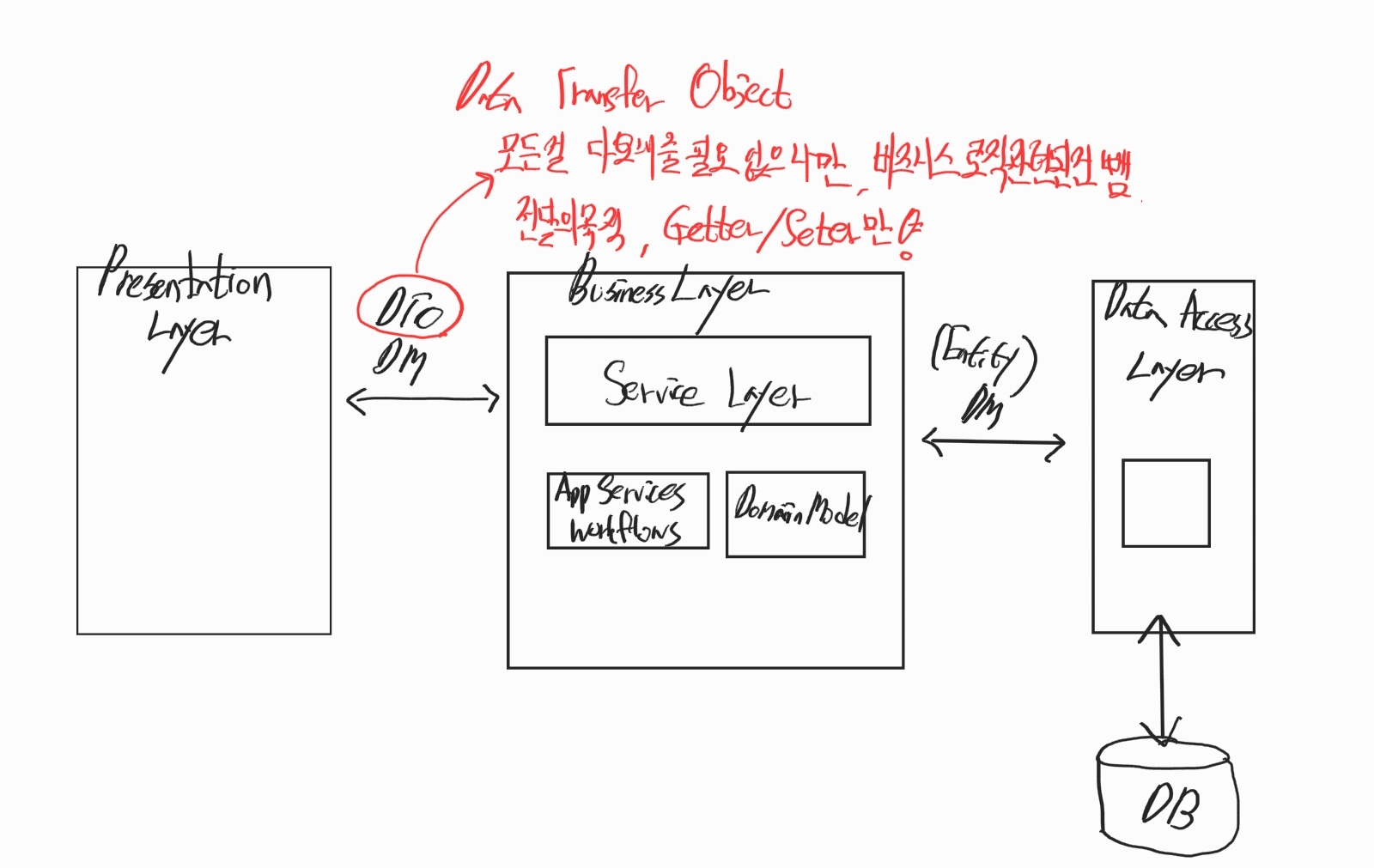

# 참고 : DTO (Data Transfer Object)란?

- Presentation layer 와 Business Layer와 전달해주는 거. Business 로직이 담긴 Entity다 보내줄 필요없으니깐 DTO를 만들어서 넘겨준다.

이런 구조에서 DTO사용이 어케되는지 확인




3) JPA entity를 DTO로 변환시켜주는 역할을 해주는 "Representation model Assembers"

- RepresentationModelAssembler 인터페이스를 구현한 구현체는 RepresentationModelAssemblerSupport 이다

- Spring에서 제공해주는 것...

- toModel()  : 하나의 리소스 바꿀때, toCollectionModel() : 하나 이상일때 사용



## ActorModelAssembler

@Component
public class ActorModelAssembler extends RepresentationModelAssemblerSupport<ActorEntity, ActorModel> {
	public ActorModelAssembler() {
		super(WebController.class, ActorModel.class);
	}

	// 1. toModel : 하나일때~
	@Override
	public ActorModel toModel(ActorEntity entity)    {
        ActorModel actorModel = instantiateModel(entity); // 인스턴스생성
        actorModel.add( linkTo(methodOn(WebController.class) // link를 추가해준다.
                .getActorById(entity.getId()))
                .withSelfRel() );
        actorModel.setId(entity.getId()); // setter사용해서 copy한다.
        actorModel.setFirstName(entity.getFirstName());
        actorModel.setLastName(entity.getLastName());
        actorModel.setBirthDate(entity.getBirthDate());
        actorModel.setAlbums(toAlbumModel(entity.getAlbums()));
        return actorModel;
	}
       //2. toCollectionModel :하나 이상일때, ActorEntity를 ActorModel로 변경해준다.
    	@Override
	public CollectionModel<ActorModel> toCollectionModel(Iterable<? extends ActorEntity> entities){
		CollectionModel<ActorModel> actorModels = super.toCollectionModel(entities);
		actorModels.add(linkTo(methodOn(WebController.class)
				.getAllActors())
				.withSelfRel());
		return actorModels;
	}
 }



4) Controller

- /api/actors : 모든 actor 조회

- /api/actors/{id} : 특정 아이디를 가진 actor조회



@RestController
public class WebController {

    @Autowired
    private ActorRepository actorRepository;

    @Autowired
    private ActorModelAssembler actorModelAssembler;

    @GetMapping("/api/actors")
    public ResponseEntity<CollectionModel<ActorModel>> getAllActors() {
        List<ActorEntity> actorEntities = (List<ActorEntity>) actorRepository.findAll();

        return new ResponseEntity<>(
                actorModelAssembler.toCollectionModel(actorEntities),
                HttpStatus.OK);
    }

    @GetMapping("/api/actors/{id}")
    public ResponseEntity<ActorModel> getActorById(@PathVariable("id") Long id){
        return actorRepository.findById(id)
                .map(actorModelAssembler::toModel)
                .map(ResponseEntity::ok)
                .orElse(ResponseEntity.notFound().build());
    }
}

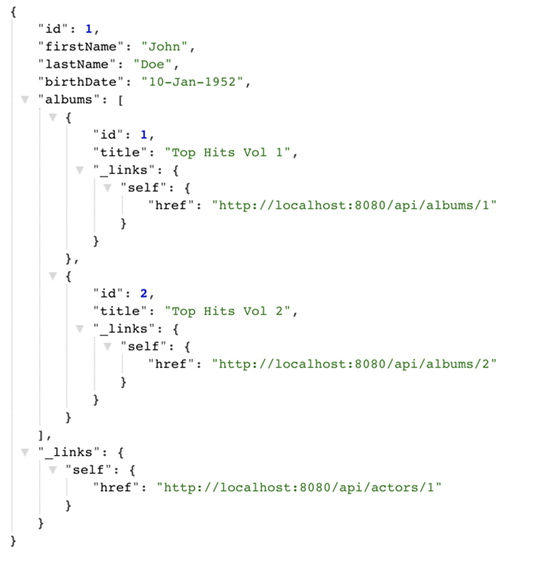

5)  http://localhost:8080/api/actors/1  : response 결과
